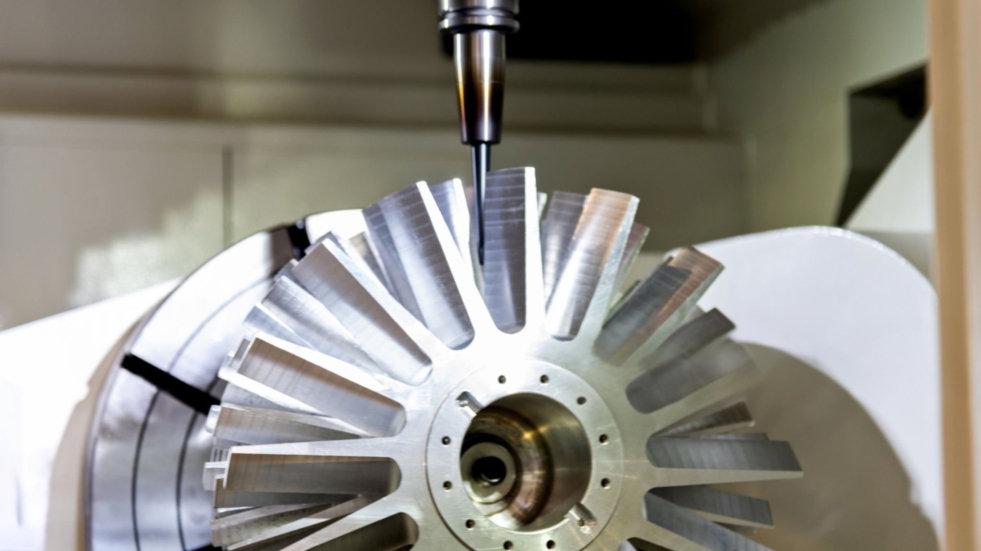

High Precision CNC Machining of Tight Tolerance Parts

Executive Summary

• Tolerance specifications define acceptable variation in manufactured parts and directly impact production costs, timelines, and part functionality.
• Achievable tolerance levels range from 0.002mm for grinding to 0.003mm for CNC milling and turning based on material properties, part geometry, and machining process.
• Nyalt is an AS9100-certified machine shop in Singapore that specializes in high-precision CNC machining of tight-tolerance parts.

Working With the Right Manufacturing Partner

Selecting the right tolerance requires more than just technical knowledge. It requires a manufacturing partner who will carefully analyze your requirements in detail and discuss specifications thoroughly before accepting your order.

Nyalt Precision is an AS9100, family-run machine shop in Singapore that has specialized in high-precision CNC machining for nearly two decades. Our capabilities span frequently specified metals, alloys, plastics, and composites, with diverse expertise in machining parts requiring the tightest achievable tolerances.

Read on to learn how we can help optimize tolerance specifications for your specific application.

Get a Quote For High Precision CNC Machining of Tight Tolerance Parts

What Are Tolerances in CNC Machining?

Tolerances define the acceptable range of variation for manufactured parts. They prevent wasted time and money by specifying only the precision level needed for proper function.

How Tolerances Work in Manufacturing

Tolerances are expressed as plus-or-minus measurements that give manufacturers clear precision targets. Understanding tolerance levels helps balance part quality with production efficiency.

• Tolerance Notation: Tolerances use ± symbols to indicate acceptable variation from a specified dimension. A part measuring 1.25″ with ±0.005″ tolerance can range from 1.245″ to 1.255″ and still function correctly.
• Tighter Tolerances: Smaller tolerance ranges require greater manufacturing accuracy and precision. These specifications increase both production time and costs significantly.
• Looser Tolerances: Larger tolerance ranges provide manufacturers with more flexibility during production. This approach reduces costs when extreme precision isn’t functionally necessary.
• Machine Capabilities: Modern CNC machines can achieve accuracy down to thousandths of a millimeter. However, having an extreme precision capability doesn’t mean every part requires it.

Why Proper Tolerance Specification Matters for Aerospace Projects

Proper tolerance specifications ensure parts function correctly without over-engineering. For AS9100-certified aerospace work, this balance is critical because tolerances that are too tight waste budget on unnecessary precision while tolerances that are too loose risk costly non-conformances and rejections. Nyalt’s 20+ years of experience help customers optimize tolerance specifications for their specific applications.

What Is Considered a Tight Tolerance in CNC Machining?

Tight tolerances typically range from 0.002mm to 0.003mm, depending on the machining process used. Multiple factors determine achievable tolerance levels, including material properties, part complexity, and manufacturing method.

Factors That Determine Tolerance Levels

Material characteristics and part design directly impact how tight tolerances can be achieved. These variables must be evaluated together when specifying precision requirements.

• Material Hardness: Harder materials allow for tighter tolerances during machining operations. Softer materials may deform or lose shape under cutting forces, limiting precision capabilities.
• Thermal Properties: Heat resistance affects dimensional stability during manufacturing processes. Materials with poor heat tolerance may warp as temperatures rise, compromising tight tolerance specifications.
• Shrink Rate: Material contraction after machining influences final part dimensions. High shrink rates require compensation calculations to achieve target tolerances.
• Part Geometry: Overall shape and size complexity directly affect achievable precision levels during prototyping and production. Intricate designs with tight spatial constraints limit tooling access and tolerance capabilities.
• Design Features: Specific part features like thin walls, deep pockets, or complex curves impact tolerance achievement. Simple geometries generally allow tighter tolerances than complex forms.

Achievable Tolerances by Machining Process

*Actual tolerances depend on the material used and the part design

How Process Selection Affects Results

Knowing which processes achieve specific tolerance levels prevents specification mismatches that delay production. This understanding helps you request appropriate manufacturing methods upfront, ensuring your parts meet requirements without costly revisions or process changes mid-project.

When Are Tight Tolerances Necessary?

Tight tolerances become essential when parts must fit together with precision or serve critical mechanical functions. Understanding when precision is genuinely required prevents failures from under-engineering and wasted resources from over-engineering.

Applications That Require High Precision

Certain assembly types and component functions require tolerances measured in microns. Identifying these scenarios early prevents costly redesigns and production delays.

Fitted Assemblies: Parts designed to connect components require precise dimensional control. Shafts fitting into holes need tight tolerances to ensure proper clearance and mechanical function.

Critical Machine Components: High-stakes mechanical systems rely on precision parts for safe operation. Engine components, medical devices, and aerospace parts typically specify tight tolerances for reliability.

Variable Tolerance Requirements: Individual components within a single part may require different precision levels. Non-critical features can use looser tolerances while mating surfaces demand tighter specifications.

How Tight Tolerances Drive Up Manufacturing Costs

Manufacturing costs increase exponentially as tolerance requirements tighten. Understanding these cost drivers helps you balance precision needs against budget constraints.

Advanced Machinery Requirements: Tighter tolerances demand more expensive, specialized manufacturing equipment. Standard machines cannot reliably achieve micron-level precision without significant investment.

Extended Production Time: Achieving high precision requires slower cutting speeds and additional machining passes. Each tightening of tolerance specifications adds substantial time to production cycles.

Inspection Equipment: Parts with tight tolerances require high-performance measurement tools like CMM systems. Standard inspection methods lack the resolution to verify micron-level accuracy.

In-Process Measurement: Extremely tight tolerances need real-time verification during manufacturing. Probe systems like Renishaw Primo Twin enable corrections before completing parts.

Reduced Error Margins: Higher precision specifications leave less room for process variation. This constraint increases scrap rates and requires more skilled operators.

Why AS9100-Certified Shops Prioritize Tolerance Accuracy

Incorrect tolerance selection creates expensive problems in aerospace manufacturing. Too loose causes functional failures and quality rejections, while too tight wastes budget on unnecessary precision that provides no performance benefit. AS9100-certified facilities like Nyalt use documented quality controls and in-process measurement systems like Renishaw Primo Twin Probe to ensure specified tolerances are maintained throughout production, preventing costly rework.

How to Choose the Right Tolerance for Your Application

Tolerance selection directly impacts product quality, production timeline, and manufacturing costs. Making informed decisions requires understanding your functional requirements and partnering with experienced manufacturers.

Tolerance Selection Factors

Application requirements should drive tolerance decisions, not arbitrary precision targets. Evaluating these considerations ensures you specify appropriate tolerances.

Functional Requirements: Base tolerance decisions on how parts will actually be used. High-precision assemblies requiring perfect fits need tight tolerances, while standalone components may function properly with looser specifications.

Assembly Interactions: Assembled parts that mate with other components often have tighter tolerances than those operating independently. Interface surfaces require precision, but non-contact features can use standard tolerances.

Material Surface Characteristics: Smooth, less abrasive materials are easier to machine to tight tolerances. Coarse or rough material surfaces limit achievable precision and increase tool wear during manufacturing.

Cost-Benefit Analysis: Tighter tolerances provide no value when looser specifications meet functional needs. Every step tighter in tolerance doubles or triples manufacturing costs without improving part performance.

Additional Questions / FAQ

Q: What tolerances can AS9100-certified aerospace machine shops achieve?

A: AS9100-certified shops like Nyalt Precision achieve tolerances as tight as 0.002mm (0.00008″) using specialized grinding processes and 0.003mm (0.00012″) with CNC milling and turning. Our Renishaw Primo Twin Probe Systems and CMM inspection equipment ensure these micron-level tolerances are maintained for critical aerospace and medical device components.

Q: Why do aerospace materials like Inconel require specialized machining for tight tolerances?

A: Aerospace alloys like Inconel and titanium work-harden during cutting and generate extreme heat that causes standard tooling to fail or parts to warp. Nyalt’s AS9100-certified facility uses ceramic cutting tools, high-pressure coolant systems, and material-specific machining strategies developed over 20+ years to maintain micron-level tolerances on these difficult-to-machine materials.

Q: When should I specify tight tolerances versus standard tolerances?

A: Specify tight tolerances only for mating surfaces and critical features where dimensional accuracy directly affects assembly fit or performance. Nyalt’s engineering team reviews your drawings to identify which features genuinely need micron-level precision, preventing over-specification that wastes time and money.

Tight-Tolerance AS9100 Machine Shop

Choosing the right CNC machine shop will also play a large role in finding the right tolerance. A good machine shop will discuss your product’s requirements and specifications in detail to help you make the best decision possible.

Nyalt Precision brings over 20 years of expertise to complex machining projects requiring micron-level accuracy. Our AS9100-certified facility machines metals, plastics, and composites to tolerances as tight as 0.002mm for critical aerospace and medical applications.

Get in touch with us to learn more about how we can help you choose the right tolerance for your application.
